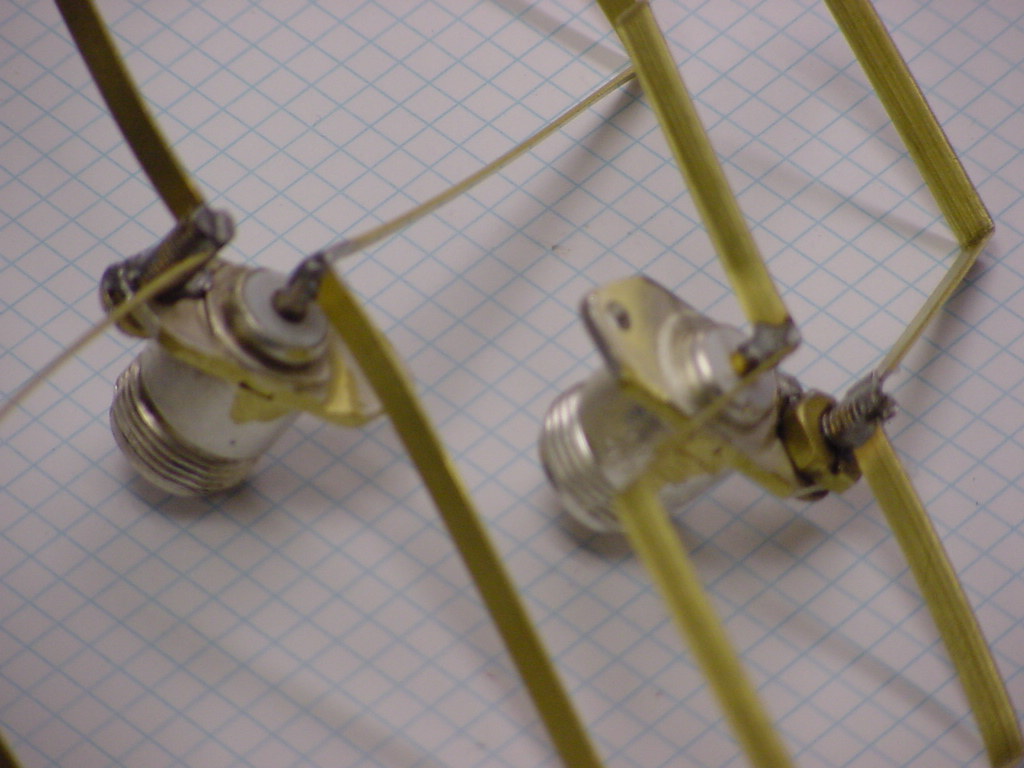

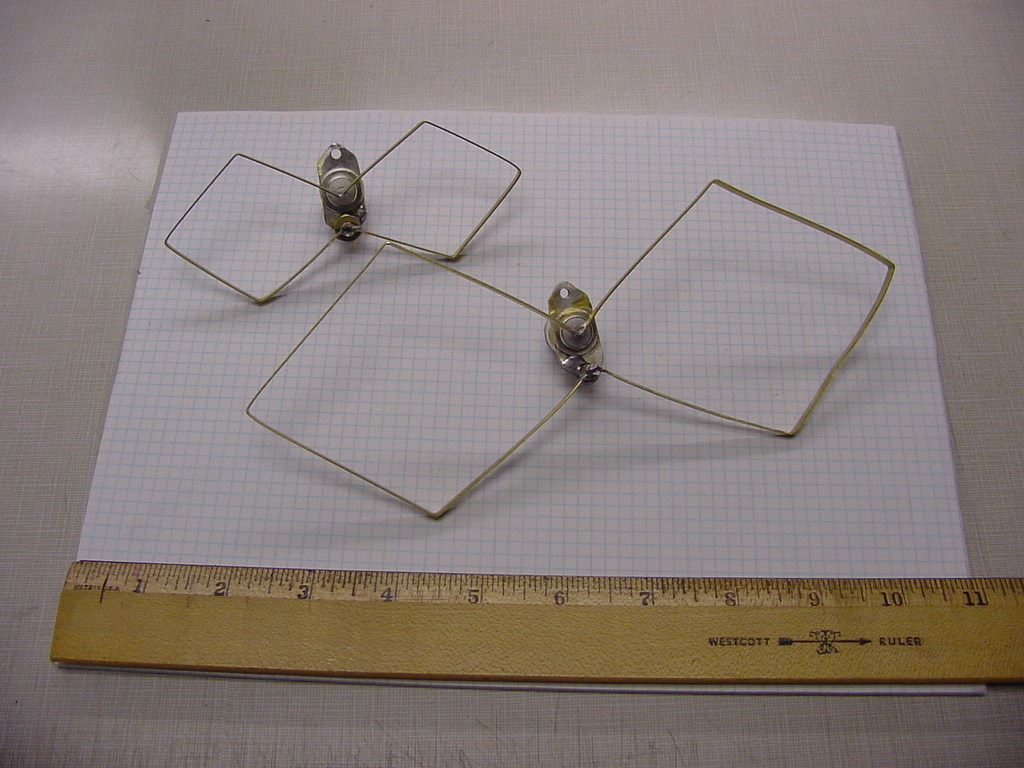

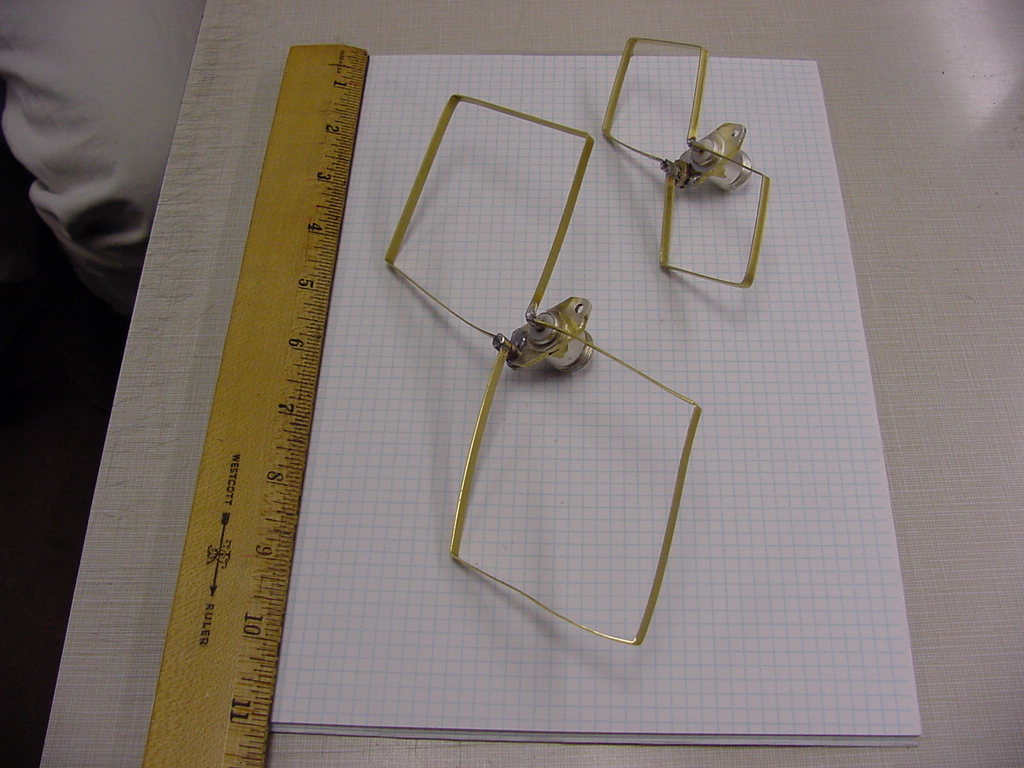

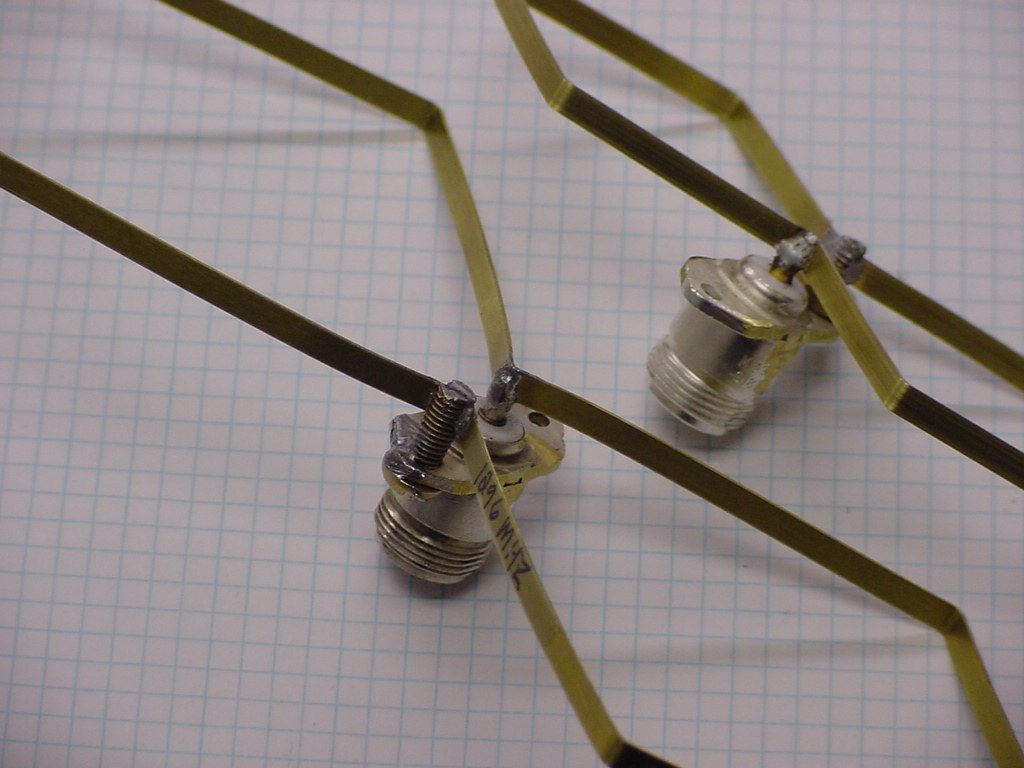

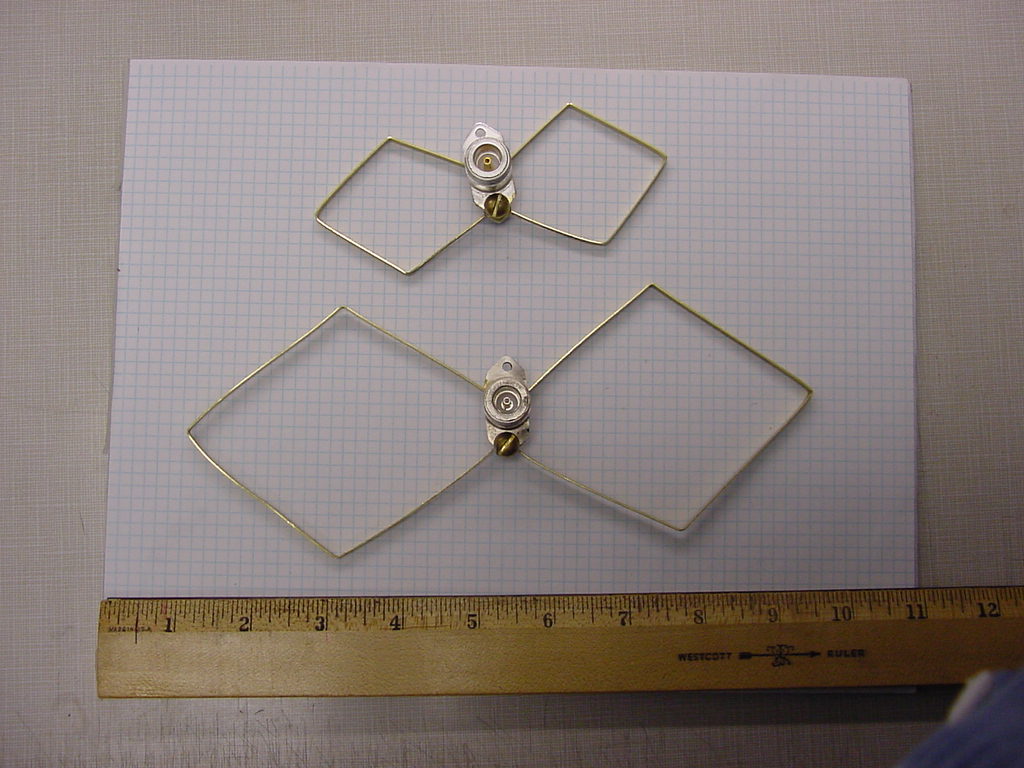

Pictures of Ron's "double diamond" loop antenna

The following loop antenna is an improvement on the double diamond antenna. The main change is the use of "strap" style stock, resulting in a more rigid mechanical device.

Electrically, the change moves the frequency higher, therefore a 14% larger antenna is required for the same band. Bandwidth is improved.
